Mr. Glass Manufacturing

Commercial Glazing Systems

Mr. Glass · Commercial

Mr. Glass

Series MG-500

Commercial Impact Door

Heavy-duty commercial door rated for impact and high-traffic use. Outswing configuration with reinforced frame profile and multipoint hardware. Full LMI and SMI certification for commercial permit applications — single and double configurations available.

Single up to 45½" × 144" Double up to 87½" × 144" +130/−130 psf

Mr. Glass

Series MG-2000

Impact Curtain Wall System

Full curtain wall glazing system for commercial and mid-rise buildings. Thermally broken aluminum framing with impact laminated glass — LMI and SMI certified for Broward and Miami-Dade permit packages. Complete engineering documentation available for architect and structural coordination.

Frame 2¾" +90/−100 psf 4-Side Silicone

Mr. Glass

Series MG-5000

Impact Storefront Wall System

Commercial storefront framing system engineered for retail, office, and hospitality applications. LMI approved with complete installation and NOA documentation for permit submissions. Accepts standard and heavy-duty glass lites up to project specifications.

Max 84" × 180" Frame 5" +130/−130 psf

Mr. Glass

Series MG-5500

Storefront & Door System

Combined storefront framing and commercial door system with matching profiles for a unified façade. Dual product approvals cover both the storefront glazing and the door unit in a single submittal package — streamlining the commercial permitting process significantly.

Frame 6" ±120 psf Dual NOA

Mr. Glass

Series MG-6000

Impact Storefront Wall System — Alt

Alternative storefront configuration with an updated framing profile offering different bite depth and mullion sizes. For projects where the MG-5000 dimensions don't align with structural requirements — same performance spec, different geometry.

Max 12' Openings Frame 2⅞" Up to +145/−100 psf

Mr. Glass

Series MG-7000

Impact Stick Curtain Wall System

Stick-built curtain wall system for commercial high-rise and mid-rise applications. Field-assembled for maximum flexibility in complex façade geometries — LMI certified with full engineering documentation and structural calculations for permitting.

Frame 2¾" Up to 140 psf High-Rise · Field-Assembled

No systems match your filters

Try adjusting your search or selecting a different category.

ES Windows

Commercial Impact Systems

ES Windows · Commercial

Curtain Wall

Impact-rated aluminum curtain wall systems — stick and unitized — for mid-rise and high-rise commercial buildings. LMI and SMI certified with full engineering documentation for permit submissions.

Curtain Wall 3 products

ES Windows

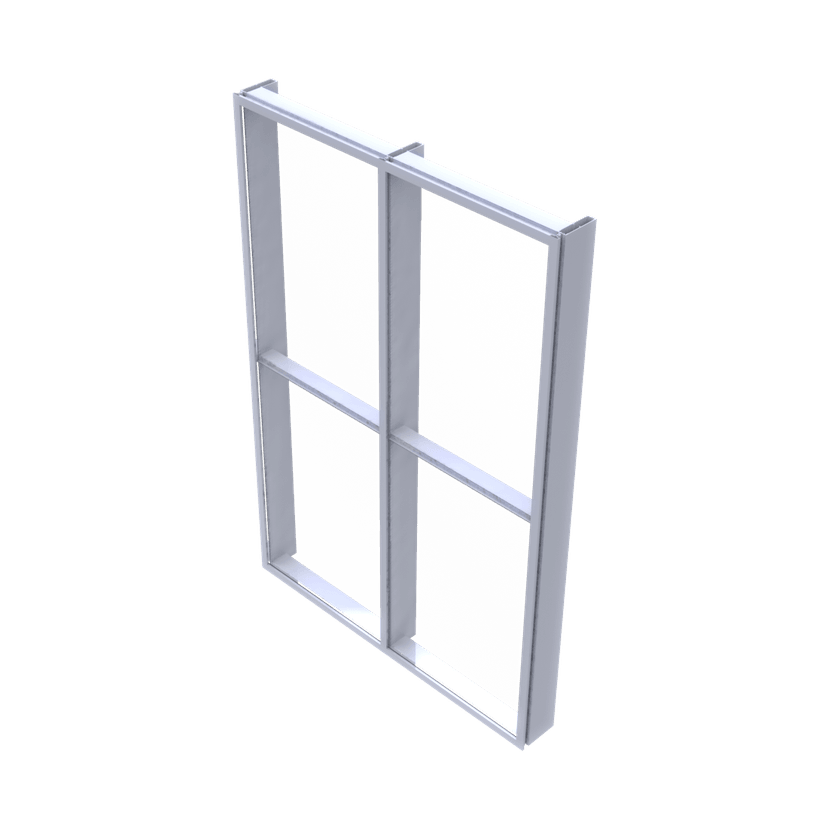

ES-CS1325

Stick Curtain Wall

13” deep stick curtain wall assembled on-site with EPDM isolated gaskets for a thermally improved, superior-strength system. Accepts 9/16” laminated or 1 5/16” insulating laminated glass. Design load +125/−125 psf, U-value 0.40.

Frame 13" +125/−125 psf U-Value 0.40

ES Windows

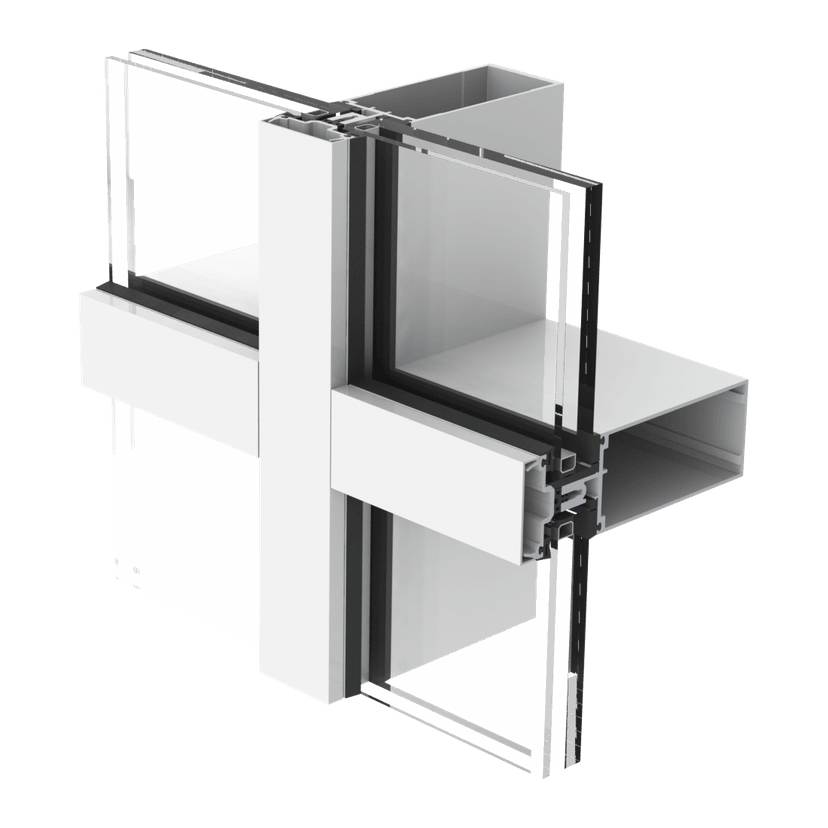

ES-7525

Stick Curtain Wall — Impact & Blast

7½” thermally improved, pressure-glazed stick curtain wall rated for both impact and blast resistance. Shear block construction with captured verticals and SSG mullion option. Design load +100/−100 psf, U-value 0.37. Compatible with ES-9000 commercial door.

Frame 7½" +100/−100 psf U-Value 0.37 Impact + Blast

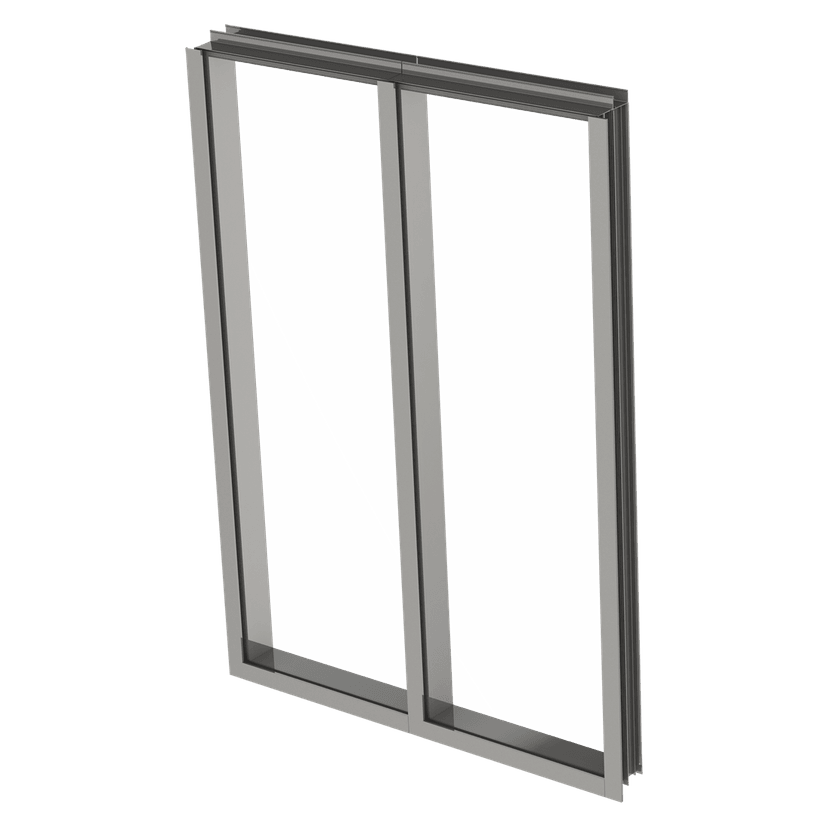

ES Windows

GW-7000

Unitized Curtain Wall

7” unitized thermally improved curtain wall with four-sided SSG and optional pressure plates. Pre-assembled and pre-glazed for faster installation. Miami-Dade County approved. Design load +100/−140 psf. Supports 90° corners and angled mullion configurations.

Unitized Frame 7" +100/−140 psf Four-Sided SSG

No systems match your filters

Try adjusting your search or selecting a different category.

Window Wall

Pre-assembled impact window wall systems for mid-rise and high-rise residential and commercial construction. Large and Small Missile certified for HVHZ applications.

Window Wall 5 products

ES Windows

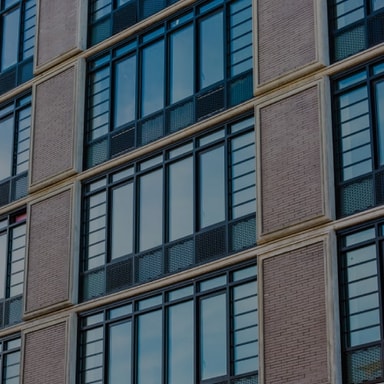

ES-7000 / 7100

Window Wall

6⅛” pre-assembled window wall with screw spline construction for rapid installation. Handles spans up to 48” × 144”. Large and Small Missile impact rated at +150/−150 psf. U-value 0.55. Compatible with ES-9000 commercial entrance door.

Max 48" × 144" +150/−150 psf U-Value 0.55

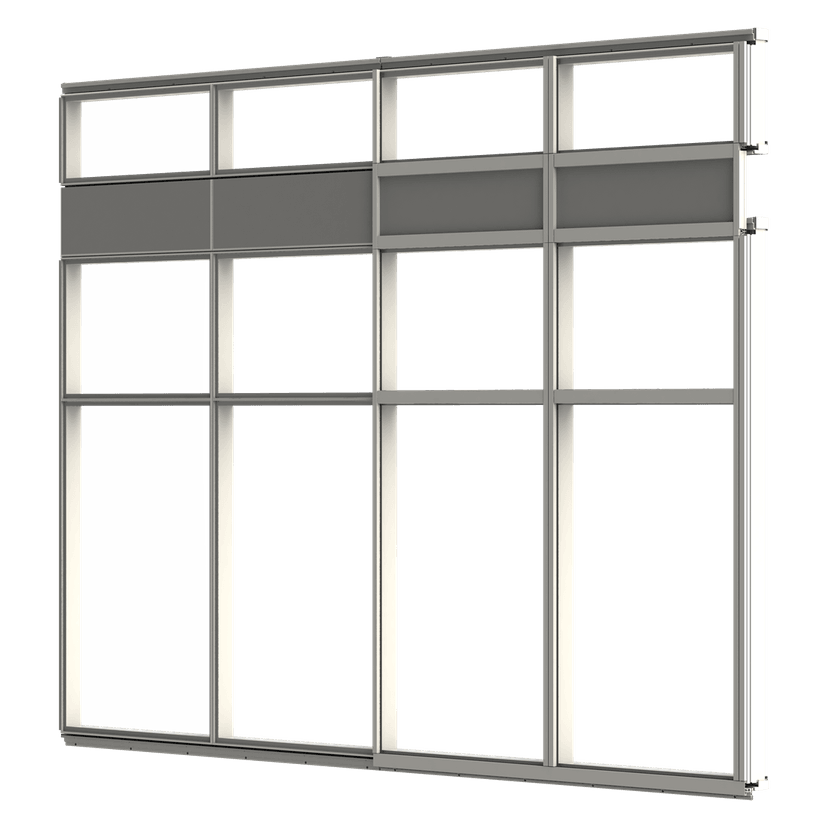

ES Windows

ES-WW1032

Window Wall — Deep Frame

10½” impact window wall with four-side captured glazing and deeper verticals for larger spans up to 60” × 192”. Large Missile rated at +185/−185 psf — the highest design pressure in the ES window wall lineup. U-value 0.61.

Max 60" × 192" +185/−185 psf U-Value 0.61

ES Windows

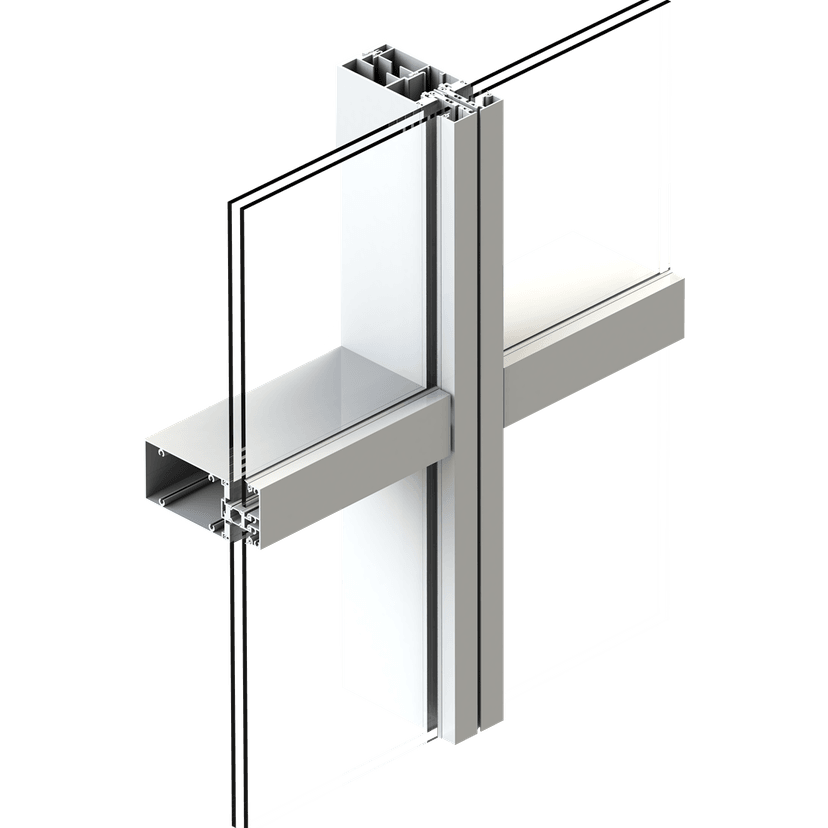

ES-WW5037 / WW5037T

Window Wall / Thermal Window Wall

Large Missile Impact rated window wall system approved under the 2020 Florida Building Code. Available in standard (WW5037) and thermally broken (WW5037T) configurations for projects requiring enhanced energy performance. Full NOA documentation available.

Standard · Thermal Break 2020 FL Building Code

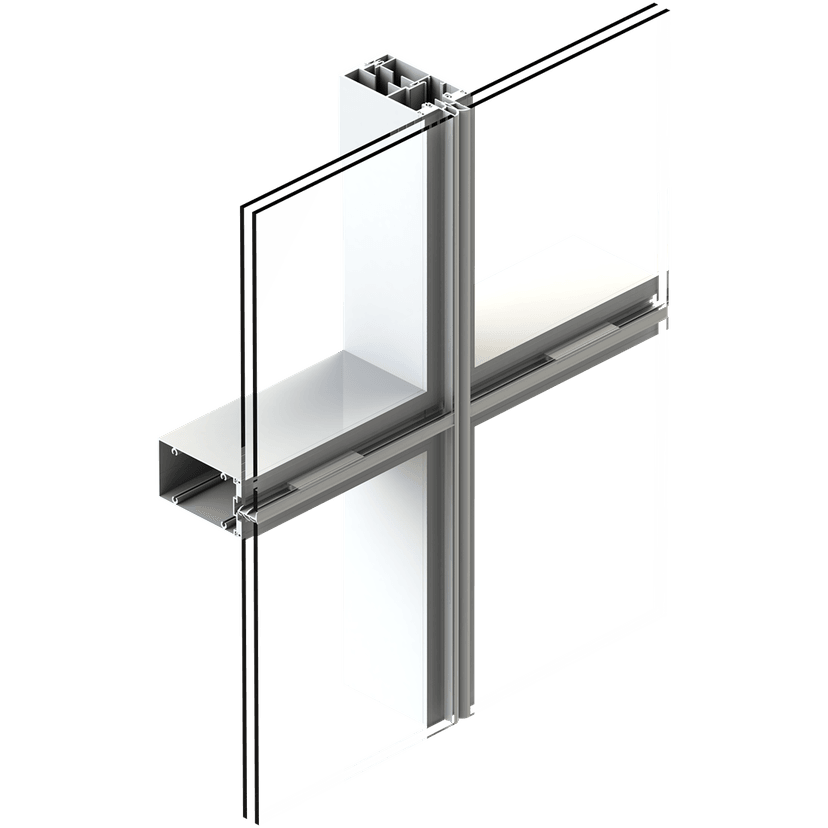

ES Windows

ES-8860

Window Wall

7” impact window wall rated at +150/−150 psf with SSG and captured glaze options. Integrated vent capability for ventilation requirements. U-value 0.46. Used in notable high-rise projects including the Fontainebleau Florida Hotel. Max panel 47 13/16” × 120”.

Max 47⅞" × 120" +150/−150 psf U-Value 0.46 Integrated Vents

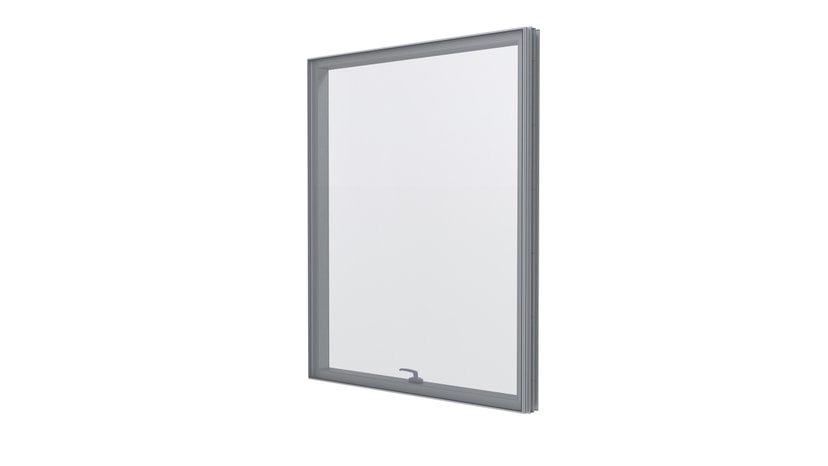

ES Windows

GW-5250

Window Wall — Thermally Improved

Thermally improved impact window wall meeting the most stringent Miami-Dade County specifications. Handles single spans up to 48” × 144” or double spans up to 48” × 288”. LMI and SMI rated at +130/−130 psf. Exceptional U-value of 0.33.

Max 48" × 288" (dbl) +130/−130 psf U-Value 0.33

No systems match your filters

Try adjusting your search or selecting a different category.

Storefronts

Impact-rated aluminum storefront systems for retail, office, and hospitality façades. Pre-assembled and pre-glazed, compatible with the ES-9000 commercial entrance door.

Storefronts 2 products

ES Windows

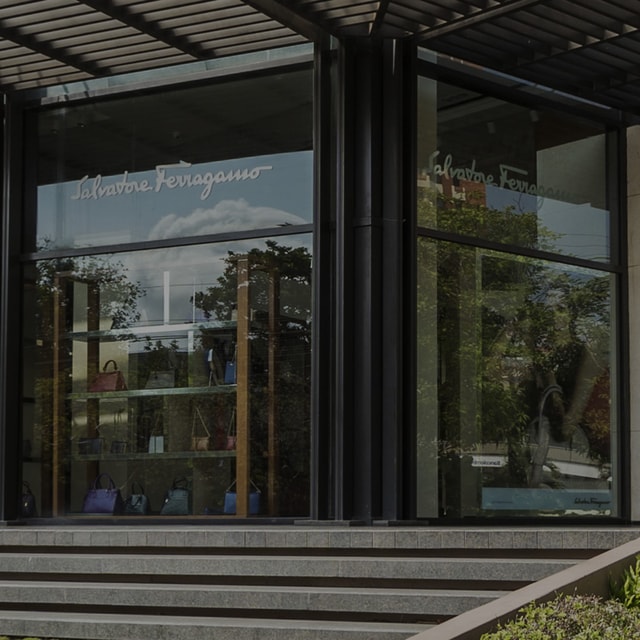

ES-8000

Impact Storefront System

5” impact-resistant storefront system with screw spline construction, pre-assembled and pre-glazed for rapid installation. Accepts 9/16” laminated glass. Max 48” × 120”. Design load +130/−130 psf. Compatible with ES-9000 impact entrance door.

Max 48" × 120" +130/−130 psf Pre-Assembled

ES Windows

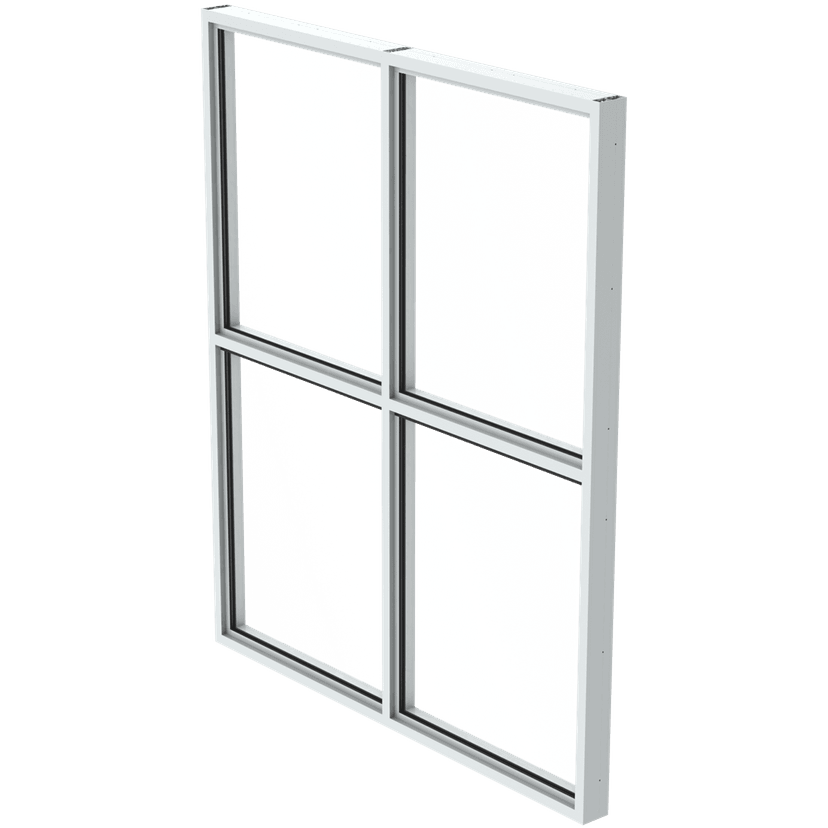

ES-8000T

Thermal Impact Storefront System

Pour-and-debridge thermally broken storefront system for superior energy performance. Accepts 1 3/16” insulating laminated glass. Max 48” × 144”. Design load +90/−120 psf. U-value 0.38 — over half the heat transfer of the standard ES-8000. Compatible with ES-9000 door.

Thermal Storefront Max 48" × 144" +90/−120 psf U-Value 0.38

No systems match your filters

Try adjusting your search or selecting a different category.

Windows & Doors

Commercial-grade impact windows and heavy-duty sliding and swing doors. Large and Small Missile certified for HVHZ — from individual openings to large multi-track configurations.

Windows & Doors 7 products

ES Windows

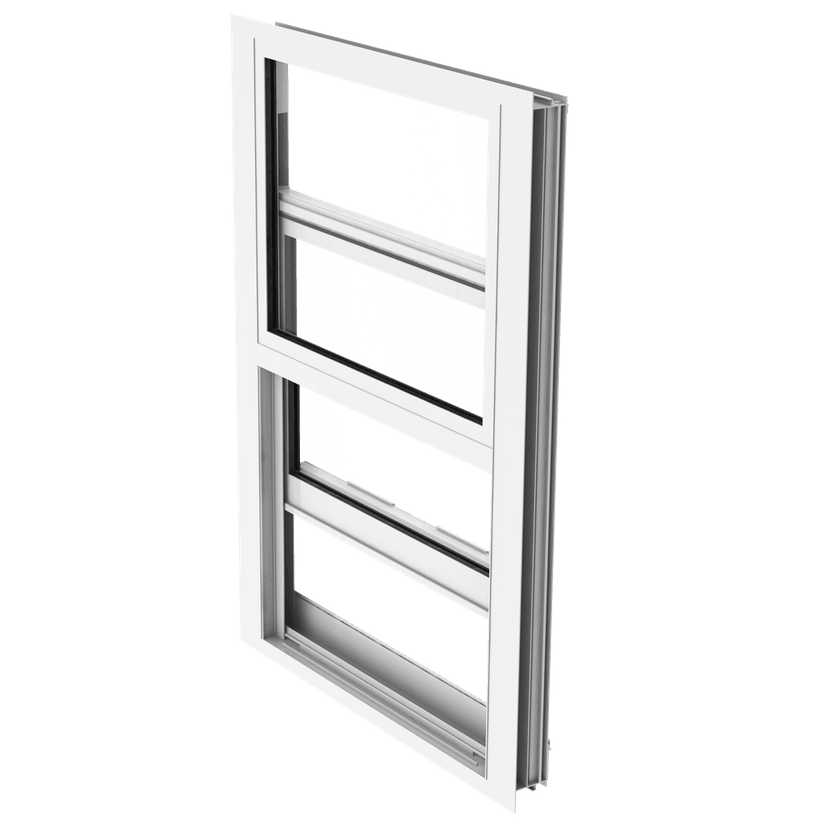

500Y

Single-Hung Impact Window

3½” aluminum single-hung window for commercial and residential applications. Spiral balance operation with fully weather-stripped frame. Max 48” × 110 3/16”. Design load +100/−140 psf LMI and SMI. Accepts monolithic and laminated glass.

Max 48" × 110" Frame 3½" +100/−140 psf

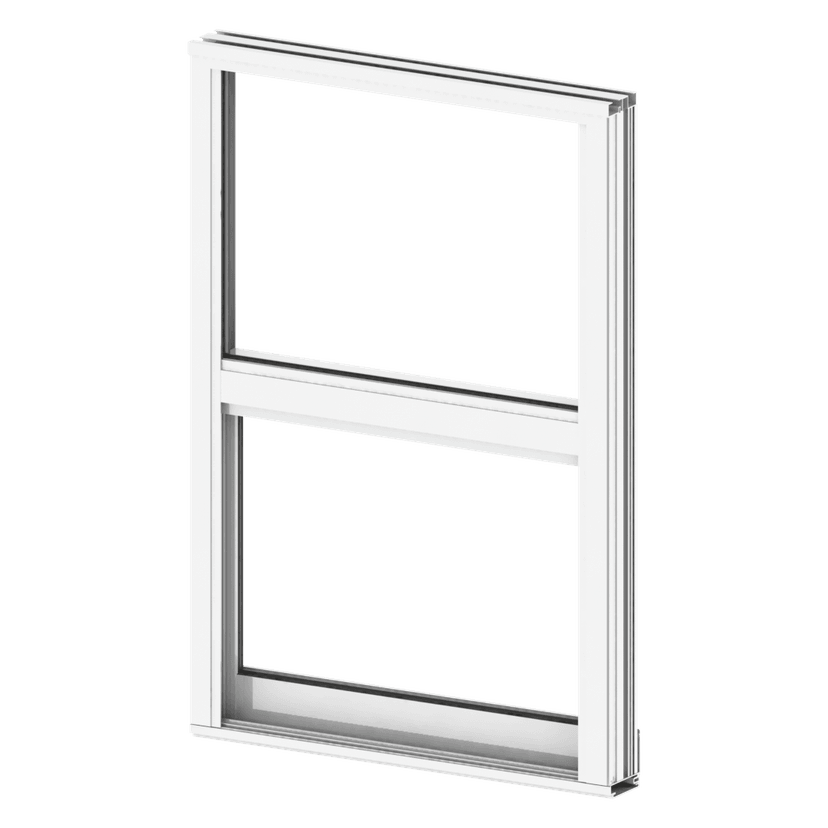

ES Windows

PH-4400

Impact Window

4 3/16” commercial impact window designed for 1 1/4” insulating laminated glass. Exceptional floor-to-ceiling height capacity — max 48” × 191½”. Design load +120/−120 psf LMI and SMI. Fully weather-stripped with anodized, painted, or wood grain finish options.

Max 48" × 191½" Frame 4³⁄₁₆" +120/−120 psf Insulating Glass

ES Windows

HR-2600

Horizontal Roller Window

3 7/8” impact-rated horizontal roller window meeting the most stringent Miami-Dade County specifications. Available in 2-panel (max 112” × 80 3/4”) and 3-panel (max 161” × 80 3/4”) configurations. Design load +120/−120 psf LMI and SMI.

Max 161" × 80¾" Frame 3⅞" +120/−120 psf OX · XOX

ES Windows

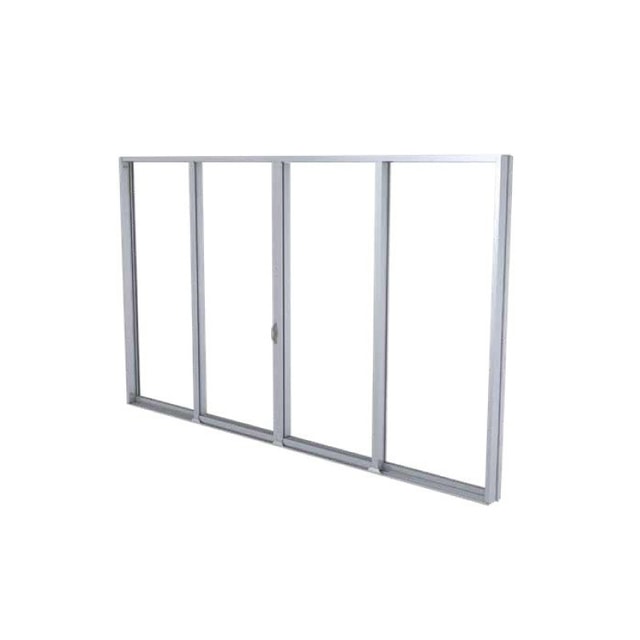

2400 ST

Heavy-Duty Sliding Glass Door

5½” heavy-duty sliding glass door for exterior commercial and residential applications. OX, OXO, and OXXO configurations up to 194 1/4” × 132”. Design load +131/−131 psf LMI and SMI. Tandem polyamide ball bearing rollers with ergonomic two-point lock.

Max 194¼" × 132" Frame 5½" +131/−131 psf OX · OXO · OXXO

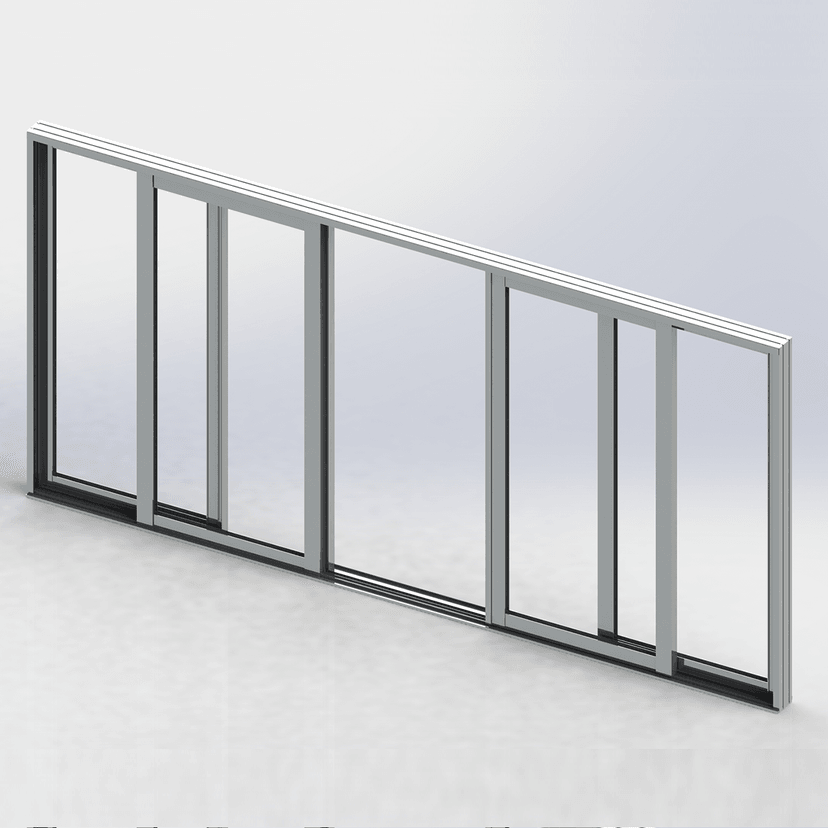

ES Windows

DM-12

Heavy-Duty Sliding Glass Door

5½” heavy-duty commercial sliding door rated for the most demanding design pressures — +125/−165 psf LMI and SMI. OX, XO, OXO, and OXXO configurations up to 192” × 144”. 9/16” laminated glass, tandem polyamide ball bearing rollers, fully weather-stripped.

Max 192" × 144" Frame 5½" +125/−165 psf OX · OXO · OXXO

ES Windows

ES-9000 / 9100

Commercial Entrance Door

2 1/4” thick impact-rated commercial entrance door built for high-traffic areas — office buildings, retail, and hospitality. Outswing and inswing configurations. Single up to 53” × 120”; double up to 101” × 120”. Compatible with ES-8000, ES-8000T, and ES-9500 storefront systems.

Single up to 53" × 120" Double up to 101" × 120" High-Traffic

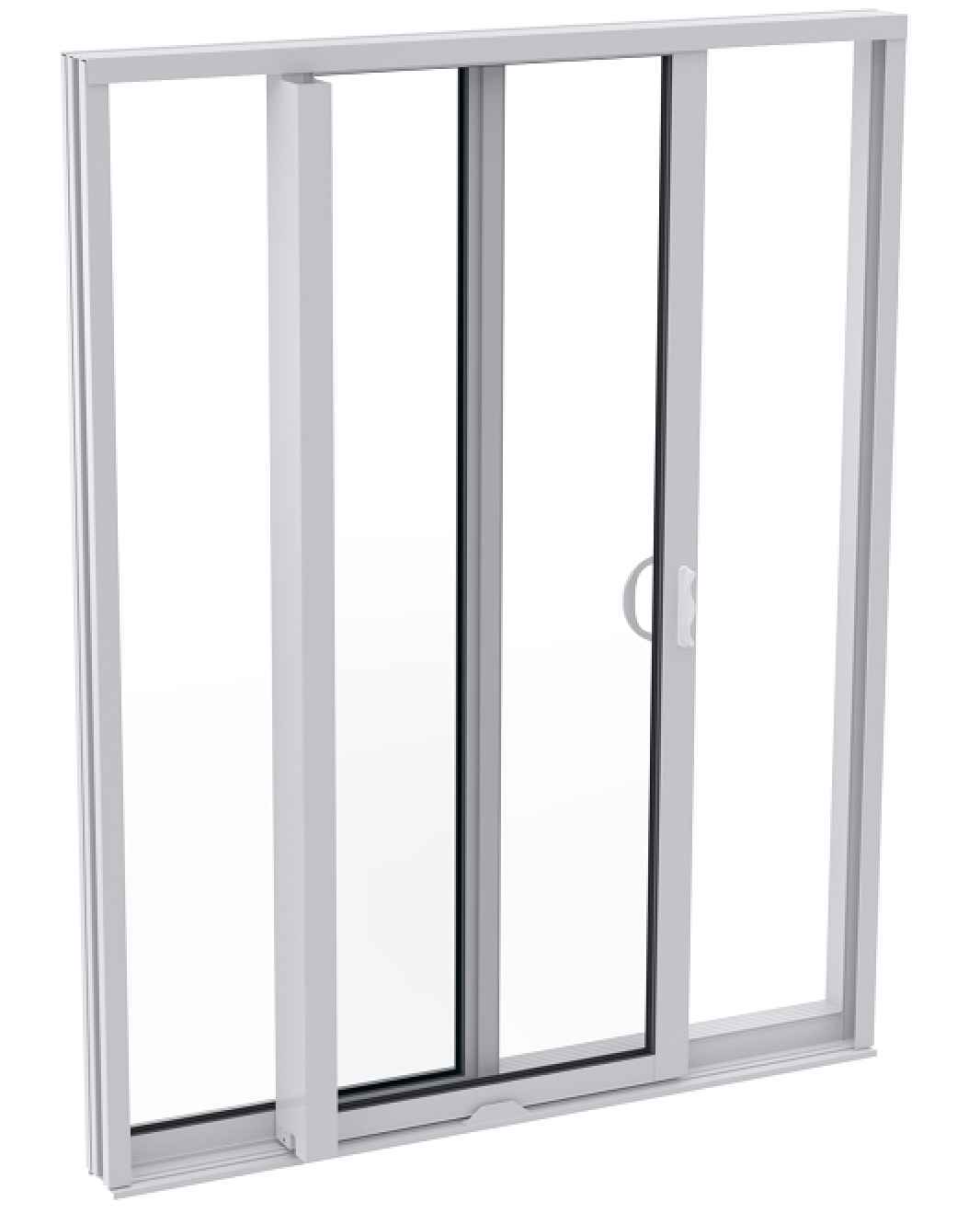

ES Windows

ES-PH3200

Sliding Glass Door

6 1/16” hurricane-resistant sliding door with high design pressures and insulating laminated glass. Available in 2- to 4-panel configurations. Max panel size 119 1/2” × 49 1/2”. Design load +120/−120 psf LMI and SMI. Optional screen available.

Max 119½" × 49½"/panel +120/−120 psf 2–4 Panel Configs Insulating Glass

No systems match your filters

Try adjusting your search or selecting a different category.

Railings

Modular and surface-mount glass railing systems for balconies, terraces, and commercial deck areas. Factory pre-assembled for on-site installation. Certified to TAS202, ANSI Z97, and ASTM E935.

Railings 2 products

ES Windows

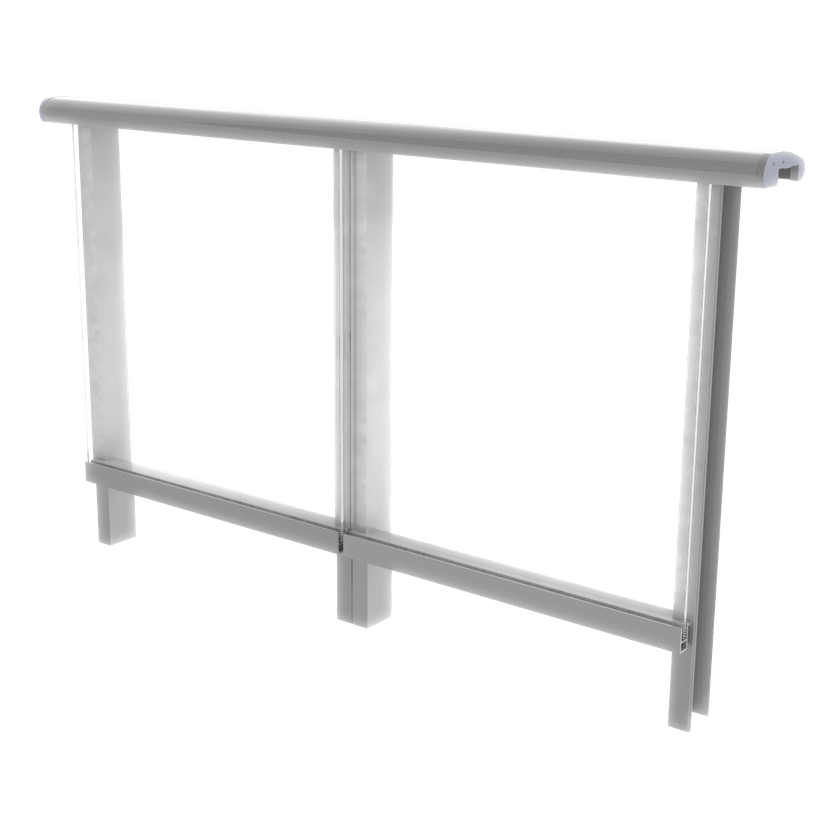

ES-RL3030

Modular Glass Railing

3” × 3” aluminum-framed modular glass railing system. Factory pre-assembled modules embed into concrete on site for a clean, fast installation. Designed for 7/16” laminated glass. Design load +/−120 psf. Certified TAS202, ANSI Z97, ASTM E935.

3" × 3" Mullion ±120 psf 7/16" Laminated Glass

ES Windows

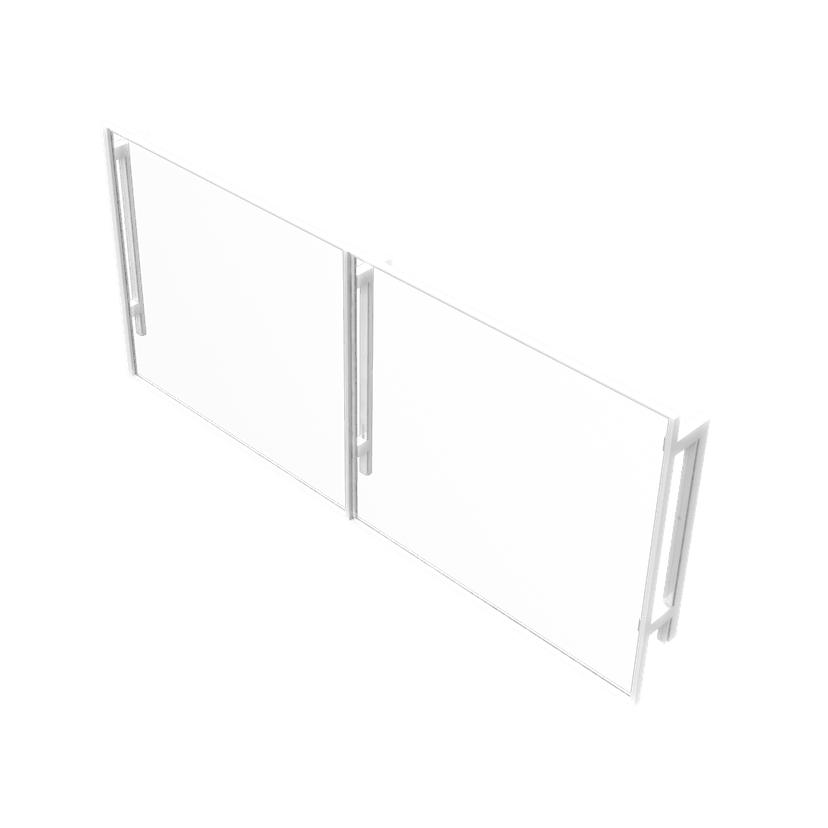

ES-RL3525

Glass Surface Railing

2½” aluminum surface-mount glass railing in two installation types: in-front-of-slab and over-slab. Accepts 1/2” or 3/8” tempered glass. Design load +/−35 psf, pull test 400 lb. Interior and exterior applications — balconies, terraces, and commercial deck areas.

In-Front · Over-Slab ±35 psf 400 lb Pull Test

No systems match your filters

Try adjusting your search or selecting a different category.

Eco Window Systems

Eco-Guard™ Commercial & Garage

Eco Window · Commercial

Commercial Windows

Florida-approved commercial storefront windows with heavy-gauge T6 aluminum profiles and 9/16” HS/HS laminated glass. Large and Small Missile certified for HVHZ installations.

Commercial Windows 2 products

Eco-Guard™

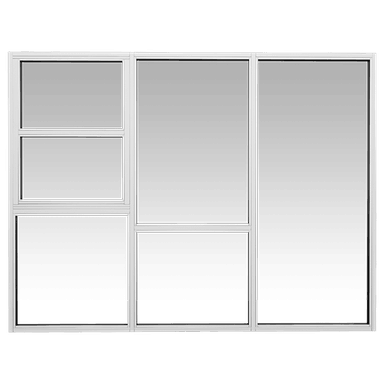

Series 400 · Eco-Guard™

Storefront Window

5” deep commercial storefront window rated for +80/−130 psf. Large and Small Missile approved, 9/16” HS/HS laminated glass. Handles spans up to 56½” × 150¾”.

Max 56½" × 150¾"Frame 5"+80/−130 psf

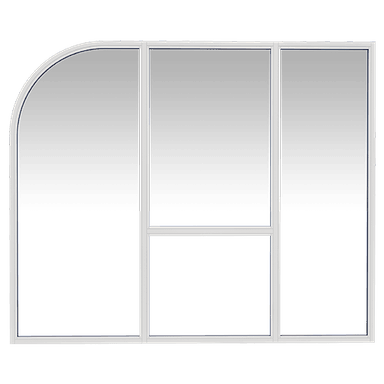

Eco-Guard™

Series 450 · Eco-Guard™

Frontset Storefront Window

4” frontset storefront window system with 9/16” HS/HS laminated glass and +80/−90 psf design pressure. Florida Product Approved for commercial glazing applications.

Max 60¾" × 108"Frame 4"+80/−90 psf

No systems match your filters

Try adjusting your search or selecting a different category.

Commercial Doors

Florida-approved commercial impact doors for storefront and high-traffic applications. Series 650 French door plus Series 800 and 810 storefront doors — all LMI and SMI certified.

Commercial Doors 3 products

Eco-Guard™

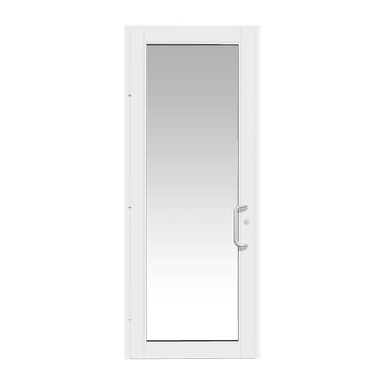

Series 650 · Eco-Guard™

Commercial French Door

Florida-approved commercial outswing French door with concealed installation screws and 3-point / multi-point lock. Available single or double; pre-hung and ready to install. Max 76¼” × 97½”.

Max 76¼" × 97½"±70 psfX · XX

Eco-Guard™

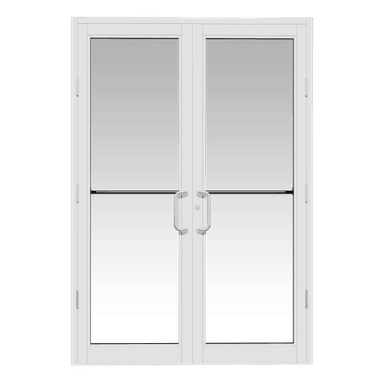

Series 800 · Eco-Guard™

Storefront Door

5” deep commercial storefront door up to 10 ft tall (132” with transom). Large and Small Missile approved, ADA threshold, 4½” butt hinges, 3-point lock, 9/16” HS/HS glazing.

Max 87½" × 132"Frame 5"+80/−80 psf

Eco-Guard™

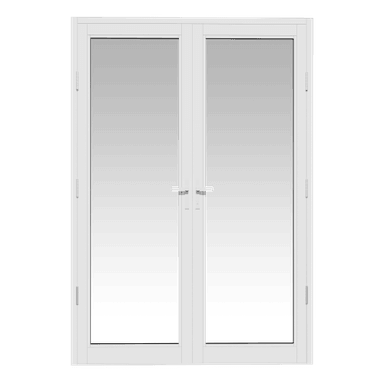

Series 810 · Eco-Guard™

Storefront Door

5” deep commercial storefront door up to 10 ft tall (132” with transom). Large and Small Missile approved with residential bumper threshold, lever handle, and 3-point lock. Multiple glass tint options.

Max 87½" × 132"Frame 5"+80/−80 psfResidential Bumper

No systems match your filters

Try adjusting your search or selecting a different category.

Commercial Glazing & Façade Systems

The complete commercial glazing package.

No systems match your filters

No systems match your filters

No systems match your filters

No systems match your filters

No systems match your filters

No systems match your filters

No systems match your filters

No systems match your filters

Working on a commercial project?
